Détails du produit
Lieu d'origine: Chine
Nom de marque: JGPV
Numéro de modèle: Le véhicule doit être équipé d'un dispositif de sécurité.
Conditions de paiement et d'expédition
Quantité de commande min: 1 jeu
Prix: USD99.9/pc to USD999.9/Set
Délai de livraison: 14 jours
Conditions de paiement: L/C,T/T,Western Union
Capacité d'approvisionnement: 1000 pièces par mois
Standard ou non standard: |
norme |
Application du projet: |
Généraux |
Caractéristiques du produit: |
Valve industrielle |
Objectif: |
Pipeline ouvert et fermé |
Bateaux de fabrication: |
Forger |
Matière première: |
A105, F11, F22, F304, F316, F321 etc. La valeur de l'échantillon est déterminée par la valeur de l'é |
Pression nominale: |
150LB à 600LB |
Taille du port: |
1/2 » - 2" |
norme d'essai: |
Essai de résistance et d'étanchéité et exigences du client |
Garantie de qualité: |
18 mois |
Standard ou non standard: |
norme |
Application du projet: |
Généraux |
Caractéristiques du produit: |
Valve industrielle |
Objectif: |
Pipeline ouvert et fermé |
Bateaux de fabrication: |
Forger |
Matière première: |
A105, F11, F22, F304, F316, F321 etc. La valeur de l'échantillon est déterminée par la valeur de l'é |
Pression nominale: |
150LB à 600LB |
Taille du port: |
1/2 » - 2" |
norme d'essai: |
Essai de résistance et d'étanchéité et exigences du client |
Garantie de qualité: |
18 mois |
Product introduction:

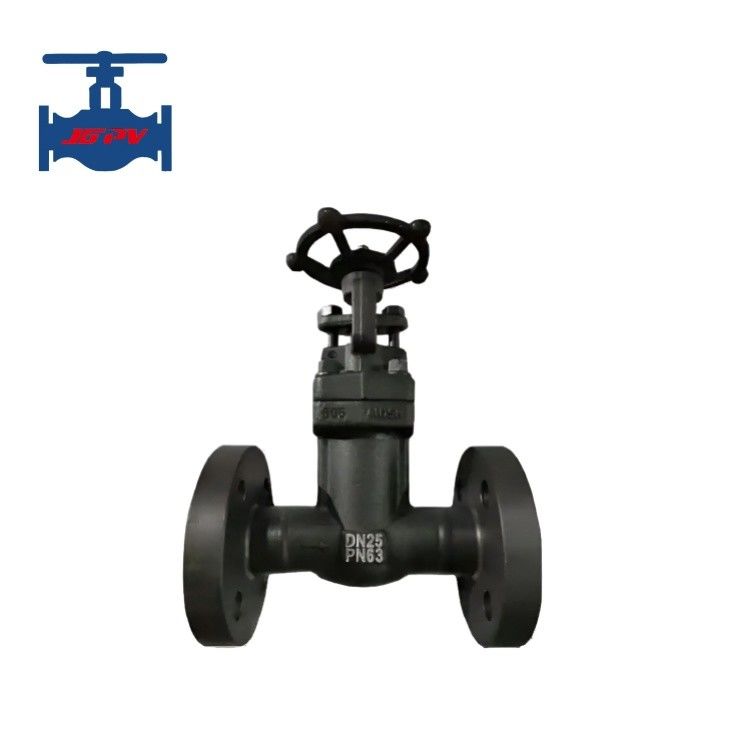

Forged steel gate valve is composed of components such as valve body, valve cover, valve stem, gate plate, and sealing parts. Among them, the valve body and valve cover are made of high-quality forged steel, which has high strength and good corrosion resistance. The valve stem is made of stainless steel material, which has good corrosion resistance and wear resistance. The gate is a key component of the valve, and its sealing performance directly affects the effectiveness of the valve. The sealing structure of forged steel gate valves is usually metal sealed, which can effectively prevent medium leakage.
And the other key component of the bellow sealed gate valve is the bellow pipe, its lower end is automatically welded with the valve stem assembly, and the upper end is automatically welded with the connecting plate to form a metal barrier between the fluid medium and the atmosphere, ensuring zero leakage of the valve stem.
This special type of dual sealing design, bellows and graphite packing to ensure zero leakage, If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards.The valve cover comes with a grease fitting, which can directly lubricate the valve stem, nut, and shaft sleeve, however, the traditional gate valves can only add lubricating oil to the threads.
Product technical parameter:
| Model | Z61H-JGPV |
| Pressure nominal | 1500lb to 2500lb |
| Port size | 1/2" - 2" |
| Sealing type | Pressure sealing sealing |
| Test pressure (Strength) | 1.5 times of pressure nominal |
| Test pressure (Sealing) | 1.1 times of pressure nominal |
| Working temperature | ≤600℃ |
| Medium application | Water, steam, oil and weak corrosive mediums |
| Connection | Flange, screw and weldable connections |
| Driven method | Hand-wheel, bevel gear and electric actuator optional |
| Installation range | Automation pipeline control in power, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc. |
Product features:
