Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                Threaded Pressure Reducing Valve, Diaphragm Structure Pressure Reducing Valve, 18 Months Warranty Pressure Reducing Valve


Application::	Général	Certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et pétrole, etc.	Connexion::	Fileté / à brides / soudé
Standard ou non standard::	Standard	Voie d'écoulement::	Bidirectionnel
Actionnement::	Manuel, électrique, pneumatique, automatique	Performances d'étanchéité::	Scellage
Température de travail::	Température normale et température élevée	Application de pression::	pression normale
Garantie de qualité::	18 mois

Application::	Général
Certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et pétrole, etc.
Connexion::	Fileté / à brides / soudé
Standard ou non standard::	Standard
Voie d'écoulement::	Bidirectionnel
Actionnement::	Manuel, électrique, pneumatique, automatique
Performances d'étanchéité::	Scellage
Température de travail::	Température normale et température élevée
Application de pression::	pression normale
Garantie de qualité::	18 mois

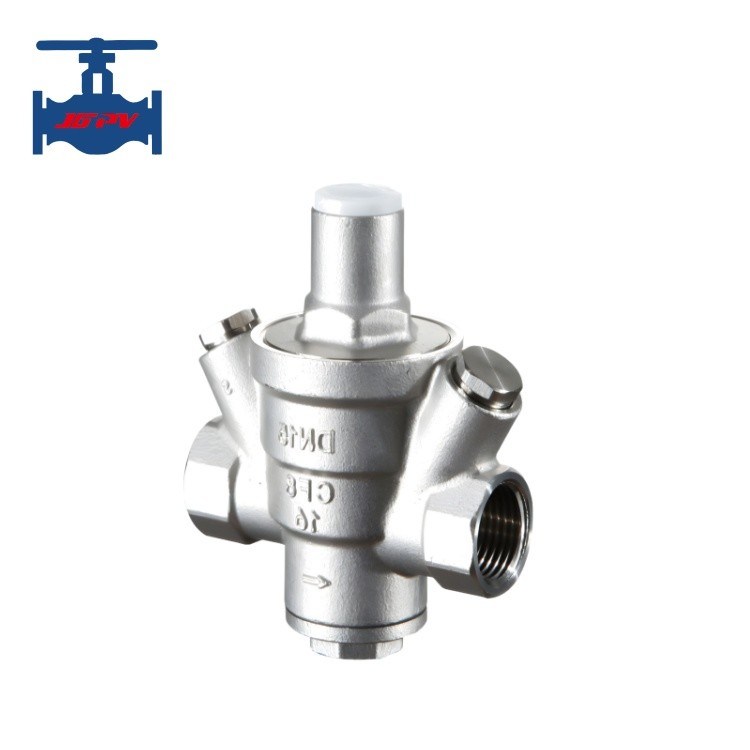

Threaded Stainless Steel Pressure Reducing Valve with Diaphragm Structure and 18 Months Warranty

Threaded Stainless Steel Pressure Reducing Valve

Threaded stainless steel pressure reducing valve

Product Introduction

The water pressure reducing valve produced by our professional manufacturer is mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. It is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, and optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product Technical Parameters

Parts	Raw Material
Valve body and bonnet	304
Bottom cover	304
Sealing	NBR
Valve disc	304
Adjusting screw	304
Diaphragm	NBR braided sandwich
Spring	60si2mna plate with nickel
Adjusting nut	Brass
Diaphragm flat pad	304

Product Features

Direct acting diaphragm structure is adopted, with simple internal structure, no jamming, reliable performance and durability.
It is dirt resistant and water-proof. It does not need bypass pipe, the piping is very simple and can save a lot of space and piping cost.
The outlet pressure is precisely adjustable. In general, it can be considered that the outlet pressure is not affected by the inlet pressure (the variation of the outlet pressure is 8% of △ P1).
Excellent hydraulic characteristics, small pressure loss, decompression ratio of more than 10:1.
It can meet various decompression requirements, especially suitable for branch decompression system.

Product Images
