Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Temperature Environments Wedge Gate Valve, Normal Temperature Wedge Gate Valve, Sealing Performance Wedge Gate Valve


Applications::	Généraux	Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.	Fonction::	Drain condensat
Connexion ::	Connexion de vis	Montage du type ::	Bâti direct
Standard ou non standard::	La norme	Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique	Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée	Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

Applications::	Généraux
Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.
Fonction::	Drain condensat
Connexion ::	Connexion de vis
Montage du type ::	Bâti direct
Standard ou non standard::	La norme
Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique
Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée
Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

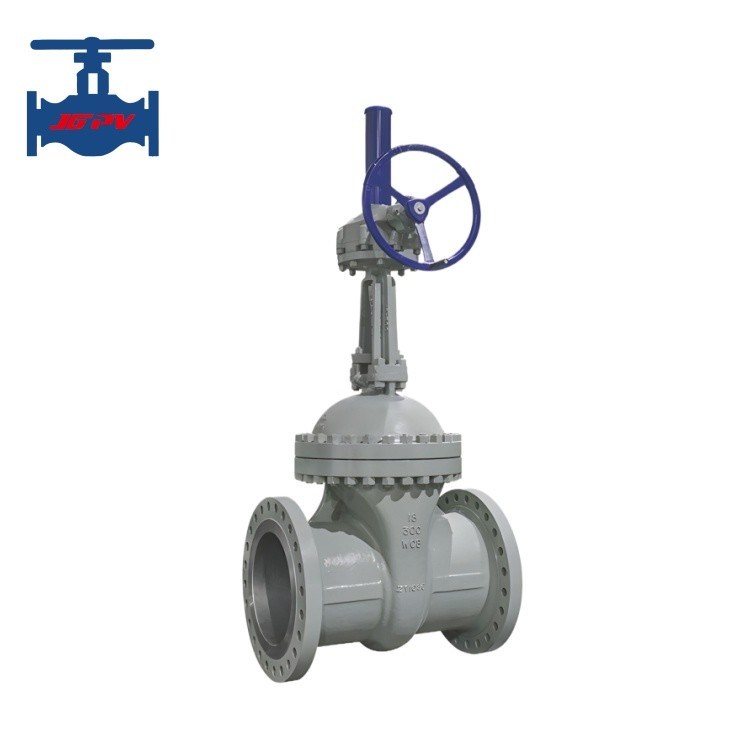

Sealing Performance Bevel Gear Wedge Gate Valve for Normal and High Temperature Environments

Bevel Gear Wedge Gate Valve

Product Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Compact structure, reasonable design, good valve rigidity, smooth flow channel, and small flow coefficient
The sealing surface is made of stainless steel and cemented carbide, ensuring a long service life
Flexible graphite packing is adopted, featuring reliable sealing and easy, flexible operation
The driving modes include manual, pneumatic, electric, and gear transmission
The structural forms are elastic wedge single gate, rigid wedge single gate, and double gate types

Product Images
