Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Standard Applications Flange Gate Valve, Water Medium Type Flange Gate Valve


Applications::	Généraux	Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.	Fonction::	Drain condensat
Connexion ::	Connexion de vis	Montage du type ::	Bâti direct
Standard ou non standard::	La norme	Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique	Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée	Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

Applications::	Généraux
Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.
Fonction::	Drain condensat
Connexion ::	Connexion de vis
Montage du type ::	Bâti direct
Standard ou non standard::	La norme
Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique
Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée
Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

Water Medium Type Flange Gate Valve for Standard Applications

Flange Gate Valve

Key Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Flange Gate Valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines and are widely used in various industrial applications.

Technical Parameters

Nominal diameter (mm)	15-300
Nominal pressure (MPa)	1.6
Test pressure (MPa)	Strength (Water): 2.4 Enclose (Water): 1.76
Main Components	Body: A216-WCB Bonnet: A216-WCB Stem: 2Cr13 Gasket: PTFE Packing: Soft graphite
Medium applicable	Water, steam and oil
Working temperature	-29℃～425℃
Connection way	Flange
Operational method	Hand wheel
Optional operation	Bevel gear, pneumatic and electric actuators

Key Features

Low flow resistance design
Reduced erosion of sealing surfaces
Compact structure with effortless operation
Bidirectional flow capability with no pressure reduction
Easy installation with flexible flow direction
Short structure with materials suitable for high temperature and pressure applications

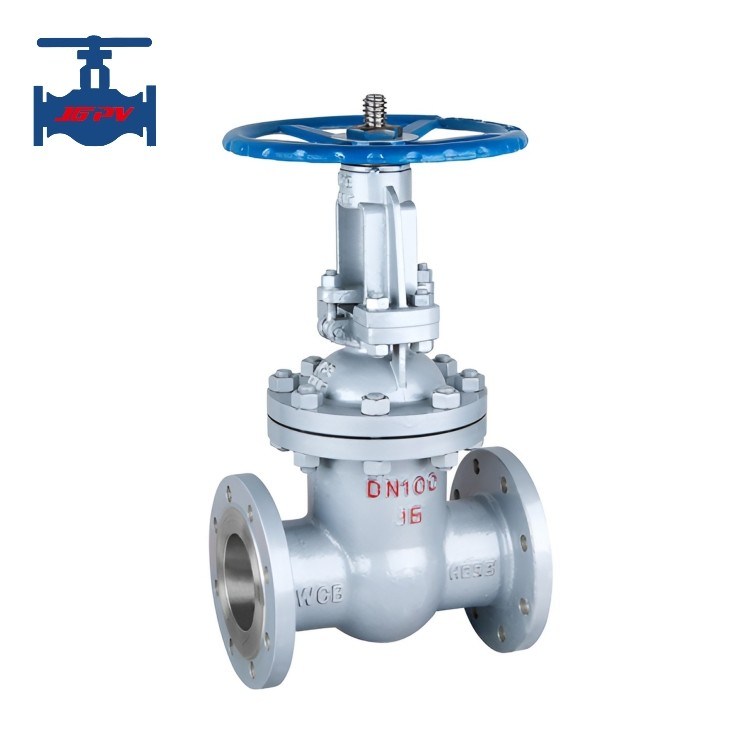

Product Images
