Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Fully Welded Ball Valve, Standard Applications Ball Valve, Non-Standard Applications Ball Valve


Applications::	Généraux	Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.	Fonction::	Drain condensat
Connexion ::	Connexion de vis	Montage du type ::	Bâti direct
Standard ou non standard::	La norme	Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique	Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée	Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

Applications::	Généraux
Le certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et huile, etc.
Fonction::	Drain condensat
Connexion ::	Connexion de vis
Montage du type ::	Bâti direct
Standard ou non standard::	La norme
Flow way::	Deux voies
Le déclenchement::	Manuel, électrique, pneumatique, automatique
Performance d'étanchéité:	Sélection
Température de fonctionnement::	Température normale et température élevée
Application de la pression::	Pression normale
Garantie de qualité ::	18 mois

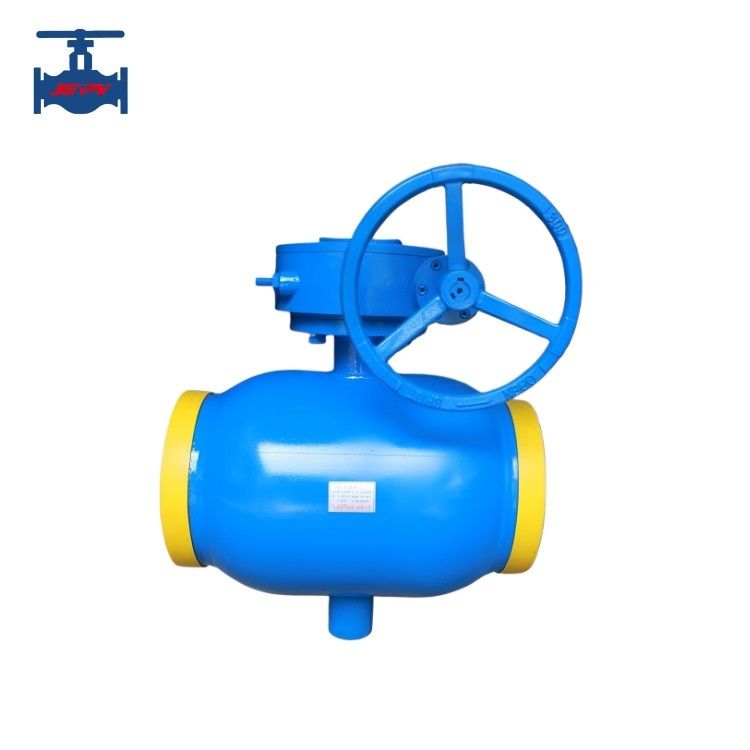

Fully Welded Turbo Integrated Ball Valve for Standard and Non-Standard Applications

Turbo Integrated Fully Welded Ball Valve

Key Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Q361F Turbo Floating Fully Welded Ball Valve is available in fixed ball and floating ball configurations, with the floating ball structure being standard. The valve maintains tight sealing through medium pressure against the outlet sealing surface.

Technical Parameters

Nominal Diameter DN (mm)	15~500
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4
Test Pressure (MPa)	Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M
	Valve ball: Stainless steel/Carbon steel
	Seat: PTFE
	Packing: Soft graphite
	Shaft: 2Cr13
	Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Fully welded valve body with carbon-reinforced Teflon gasket for long-life operation under demanding conditions
Finely ground stainless steel ball ensures years of reliable operation
Floating ball structure with inclined elastic sealing ring maintains tight sealing under unstable pressure
Anti-leakage valve stem design with dual "O" rings for tight sealing during rotation
Maintenance-free design with easy installation and low operating costs
Extendable valve stem for heat preservation applications
Reversible operating handle for flexible installation
