Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 Copper Ball Valve, ISO14001 Copper Ball Valve, Manual Copper Ball Valve


Application::	Général	Certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et pétrole, etc.	Connexion::	Fileté / à brides / soudé
Standard ou non standard::	Standard	Voie d'écoulement::	Bidirectionnel
Actionnement::	Manuel, électrique, pneumatique, automatique	Performances d'étanchéité::	Scellage
Température de travail::	Température normale et température élevée	Application de pression::	pression normale
Garantie de qualité::	18 mois

Application::	Général
Certificat::	ISO9001, ISO14001
Type moyen::	Eau, vapeur et pétrole, etc.
Connexion::	Fileté / à brides / soudé
Standard ou non standard::	Standard
Voie d'écoulement::	Bidirectionnel
Actionnement::	Manuel, électrique, pneumatique, automatique
Performances d'étanchéité::	Scellage
Température de travail::	Température normale et température élevée
Application de pression::	pression normale
Garantie de qualité::	18 mois

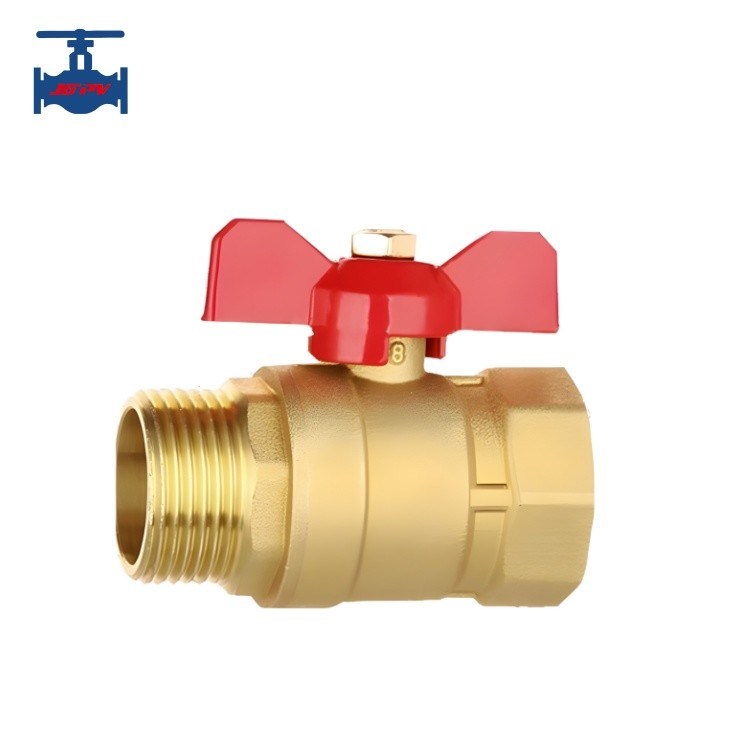

ISO9001 ISO14001 Certified Manual Copper Ball Valve with Inner and Outer Wires for Water Oil and Steam

Manual Copper Ball Valve with Inner and Outer Wires

Manual copper ball valve with inner and outer wires

Product Introduction

Two piece internal thread ball valve is a common type of valve, which consists of valve body, valve ball, valve stem, valve seat and other components. Among them, the valve body is composed of two hemispheres connected by threads in the middle. The valve ball is spherical and can rotate inside the valve body to achieve switch control. The valve stem is a component that connects the valve ball and the handle, and controls the opening and closing of the valve ball by rotating the handle. The valve seat is the sealing gasket of the valve ball, which can ensure the sealing performance of the valve.

The characteristics of this valve are simple structure, good sealing, easy operation, and long service life.

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

The fluid resistance is small, and its resistance coefficient is equal to that of a pipe segment of the same length.
Simple structure, small size, and light weight.
Tight and reliable, plastic is widely used as the sealing surface material for ball valves with good sealing performance, and it has also been widely used in vacuum systems.
Easy to operate, quick opening and closing, only need to rotate from fully open to fully closed; Easy to control from a distance.

Product Gallery
