Scotch And York BR Series Pneumatic Actuator with Dual Guide Design Modular Structure and IP66 Protection

High Quality Scotch And York Pneumatic Actuator For Regulating Valve Use

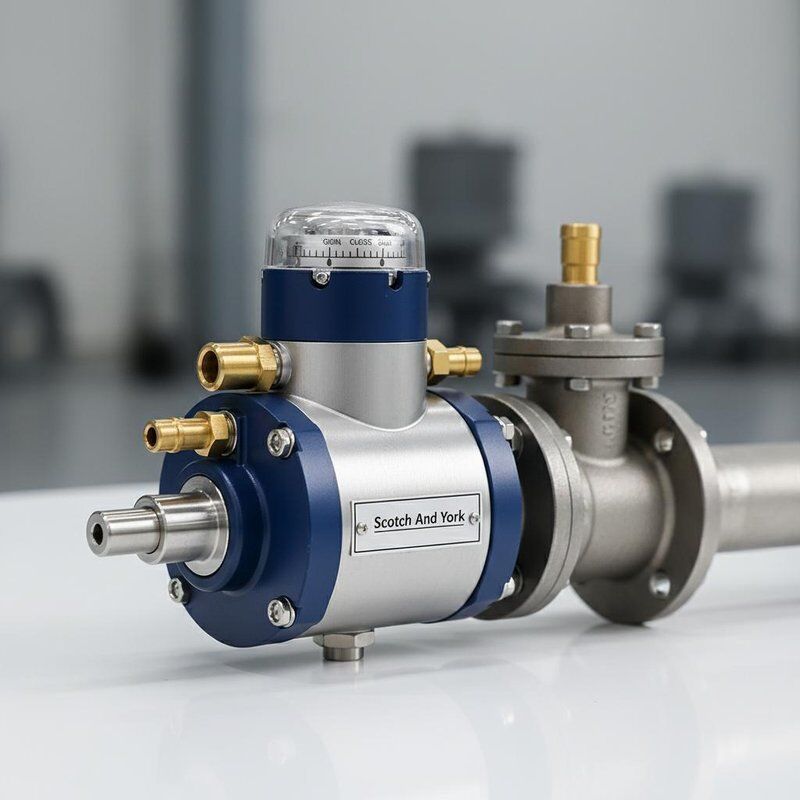

BR Series scotch and york pneumatic actuator is the most advanced series piston type pneumatic actuator at present and meets the torque requirement of torque scope of 450N.m-250,000N.m. with output angle 0-100°, can meet the needs of various rotary control valves, butterfly valves, ball valves, and eccentric rotary valves.

BR series scotch and york pneumatic actuator adopts a dual guide design, with smooth and reliable piston operation, high output torque, and convenient installation and maintenance. By sealing with the piston sealing ring, the air source pressure acts on the piston to generate movement, driving the pushing rod to move left and right. The pushing rod is converted into angular stroke motion through the shift fork joint. By configuring a spring reset device, it is possible to achieve the function of resetting by compressing and restoring the spring in the event of loss of air supply.

• Modular structure design: Manual operation devices such as screw type, bevel gear, and hydraulic are used to select a quick dis-assembly structure. The limit device, which is easy to maintain on site and can adjust the stroke, has an adjustment range of 60°to 100°angle
• Long life guarantee: Adopting a dual directional balance design, it effectively ensures the stability of the piston's full stroke operation. Chromium plating or PTFE surface treatment ensures that the surface of the cylinder block is always smooth and has extremely low friction coefficient, making the sealing components have an ultra long service life.
• Fully sealed box structure design: Achieving IP66 protection level. Adopting a fork joint structure that can withstand high thrust conversion, both the fork joint and rotor are hardened. Selecting sealing components that meet the requirements of low and high temperature environments ensures sealing performance at different environmental temperatures.
• Highly stable spring reset device: Ensures that the spring reset thrust does not decrease with the increase of usage time.
• High security level design: Adopting a fully welded spring reset cylinder body device to permanently solve safety hazards at the spring end.
